RackDraw
Design, analyze, and export 19-inch equipment rack elevations for AV and broadcast.
RackDraw is a macOS tool for designing and documenting equipment rack elevations. It renders standard 19-inch racks with front- and rear-rail placement, mount-aware collision detection, and depth-clearance analysis, then exports clean elevations to PDF. A built-in library of 294 items across 17 manufacturers — plus custom equipment and auto-arrangement — gets a rack built fast.
Features

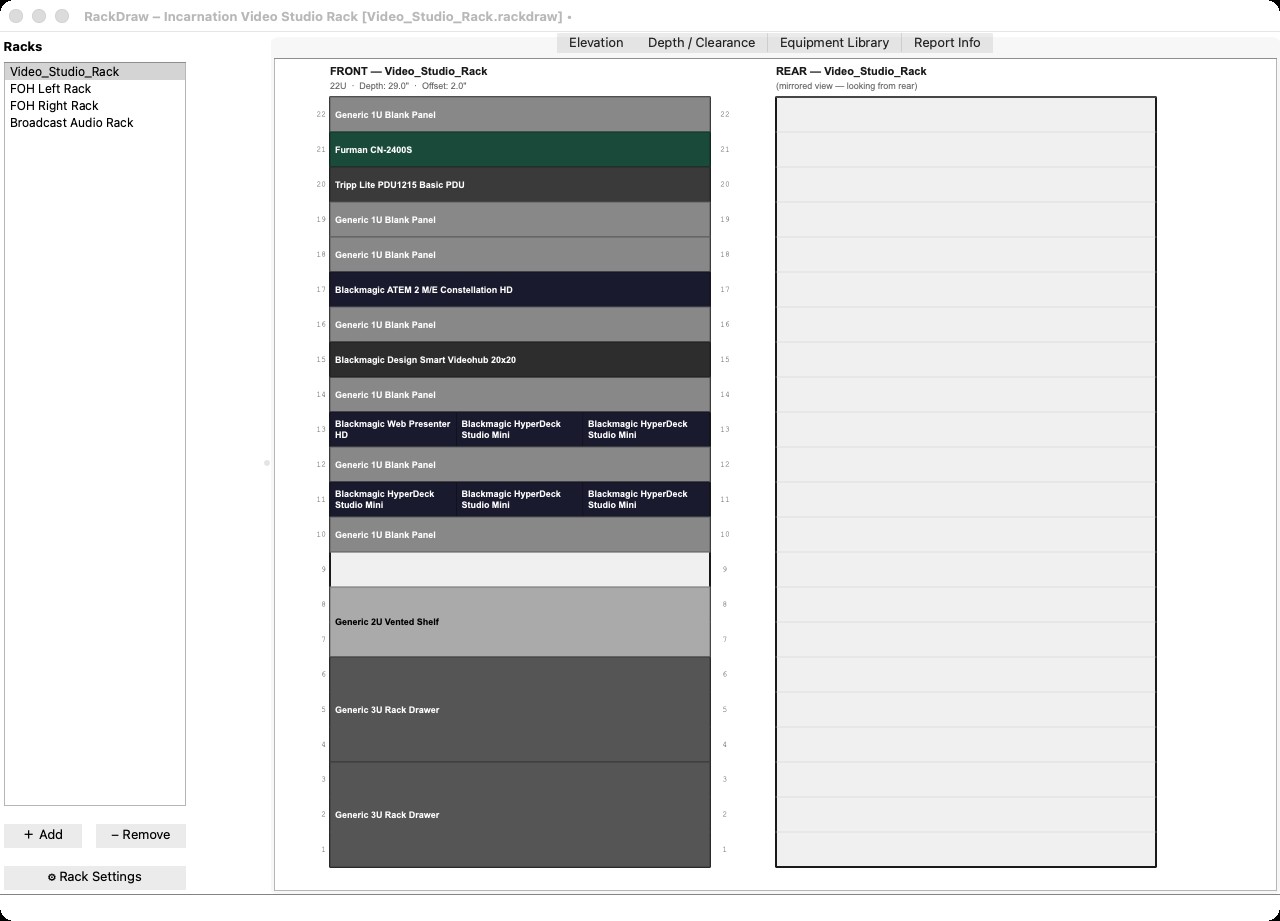

- Rack elevation diagrams for standard 19-inch racks, with multi-rack projects and adjustable zoom
- Front-rail, rear-rail, or both-face placement with mount-aware collision detection

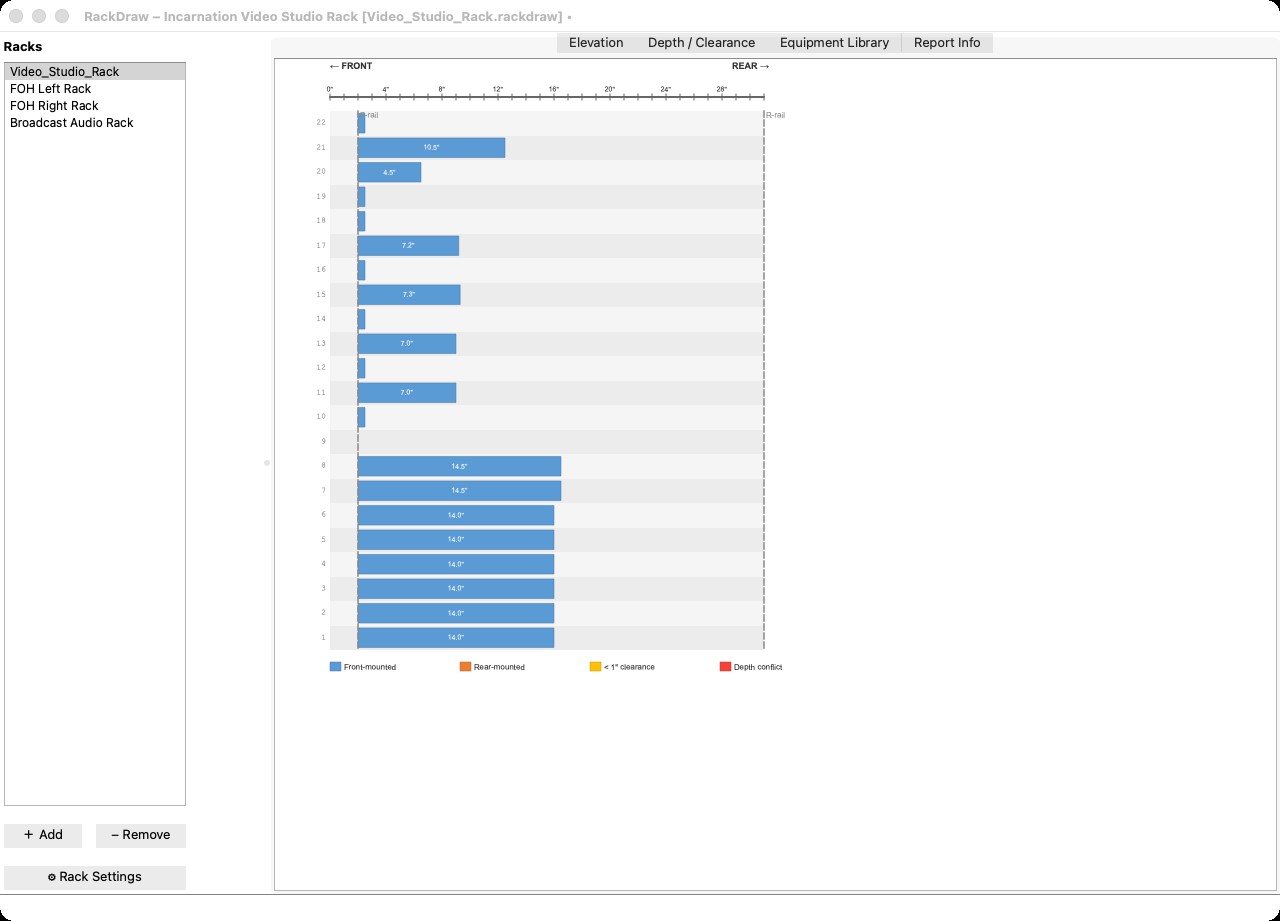

- Depth-clearance analysis: a side-profile view showing per-U front/rear depth usage and conflicts

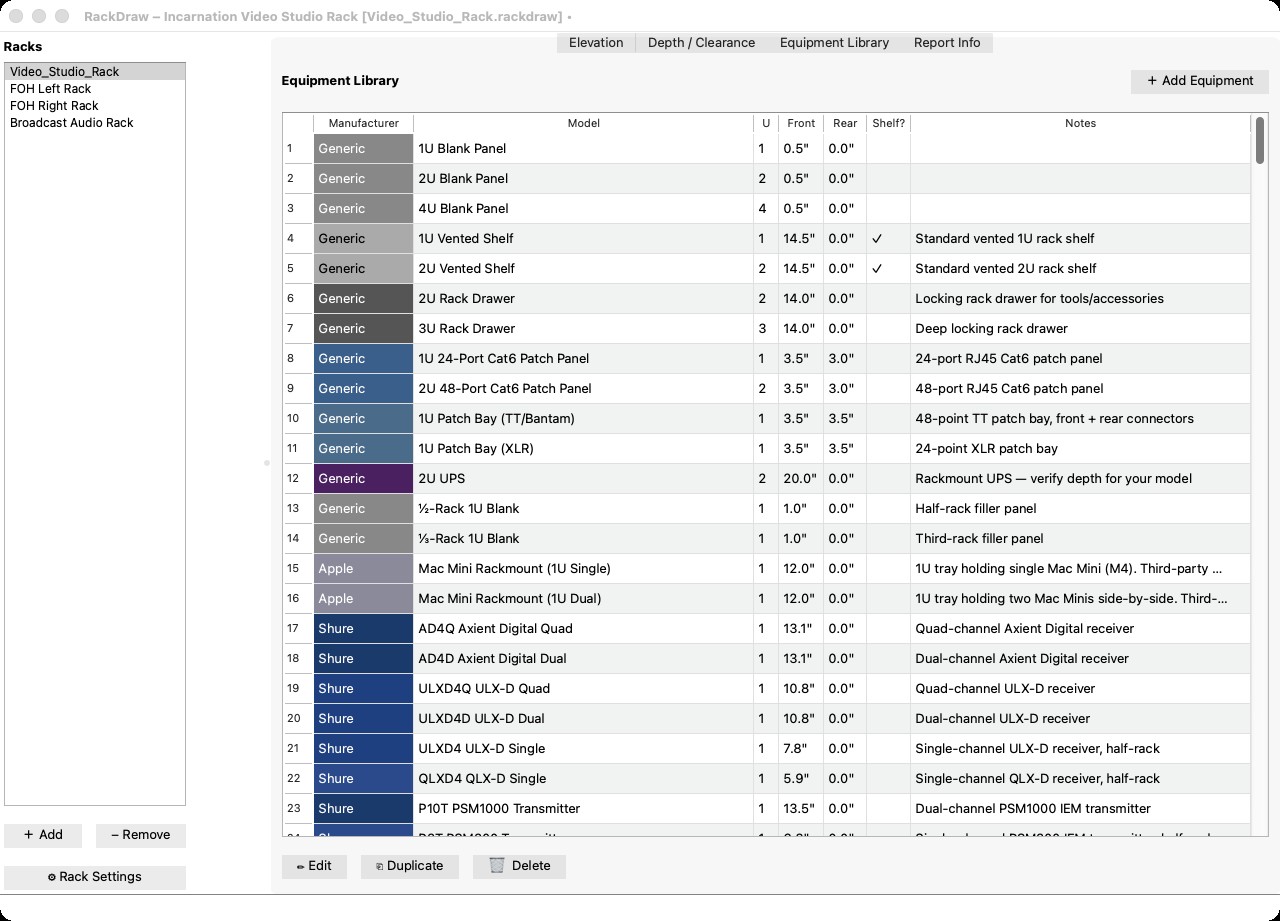

- Built-in library of 294 equipment items across 17 manufacturers, plus custom equipment you define
- Drag-and-drop placement with smart suggestions: find-next-fit, shuffle-to-fit, and a full auto-arrange wizard
- Shelf aerial view for top-down positioning of items within shelf units
- PDF export, full undo/redo history, and equipment-library import/export
Questions?
Visit the RackDraw support page or email [email protected].
